Lumma Stealer’s .reloc trick: 347 KB of payload hidden in plain sight, plus 70 MB of 0xCC to defeat the YARA filesize gate.

Executive summary

The 74 MB sample is a hijacked copy of MultiCommander’s MultiUpdate.exe with a 347 KB encrypted Lumma payload smuggled inside its .reloc section, and 70 MB of 0xCC padding bolted onto the end purely to defeat AV/sandbox file-size limits and the published YARA rule’s filesize < 5000KB condition.

This binary is a textbook 2024-era LummaC2 delivery artifact. Four structural tricks combine to defeat naive defenses:

1. Legitimate-software disguise. The carrier is a recompiled copy of the open-source MultiCommander auto-updater. PDB path, manifest identity (Microsoft.Windows.AutoUpdate), embedded XML schema, version-string lookups against multicommander.com, and ASUS-related strings all survive in the binary. A defender allowlisting on those signatures would be wide open.
2. Lifted Authenticode signatures from the leaked NVIDIA certs. The carrier is dual-signed with both NVIDIA Corporation code-signing certificates leaked in the March 2022 Lapsus$ breach (serials 14781BC8…DCC518 and 7BC15AF2…8642DE). Both signatures fail cryptographic verification (INVALID_DIGEST) — this is signature lifting, not signing-with-leaked-key — but EDR and triage tools that check “is signed by NVIDIA” without validating the digest will trust the file. See §4.
3. Encrypted payload concealed in .reloc. The PE’s relocation section legitimately holds 33 KB of base relocations (entropy 6.65). A further 347 KB of high-entropy data (entropy 7.51) is appended inside the same section, well past the boundary declared in the BaseRelocationTable data directory. Static analysers that trust the directory miss it; the runtime loader needs only the legitimate relocs and ignores the trailer.
4. Massive 0xCC overlay padding. 73,513,369 bytes of INT3 bytes pad the file to 74 MB. The padding has zero functional purpose. It exists to (a) exceed AV file-size scanning limits, (b) push the file beyond the 32 MB / 50 MB upload caps used by sandboxes and bazaars, and (c) silently break the public YARA rule (win.lumma_w1.yar, Embee Research) which requires filesize < 5000KB.

Family attribution is certain. A companion artifact System.txt recovered from the same engagement is a panel-side exfiltration dump (“LummaC2, Build Oct 9 2023”, victim SINTHUJAN, egress 185.160.247.17 / CH) — confirming the Lumma operator chain directly from infrastructure-side telemetry.

Engagement timeline

Q1 2025. An analyst at the customer’s site loads a major Swiss news publisher in their browser. A malvertising creative served through DoubleClick’s ad rotation drops the carrier into Chrome’s on-disk cache. Four hours later, the SOC’s Splunk surfaces the activity. Eleven days after that, forensics confirms LummaC2.

This section reconstructs the engagement narrative end-to-end — from drive-by drop, through SOC detection, to forensic confirmation and IOC deployment. The customer is a financial-services organisation; their identifying details, hostnames, internal IPs, and usernames are redacted. Sample family attribution and IOCs are unchanged from the original engagement record.

Customer & environment

Timeline

Times are local (CET). Drop time is taken from Chrome cache file-creation timestamps; SOC times are from Splunk event ingestion. T+ deltas are measured from drop.

Initial access — malvertising via DoubleClick

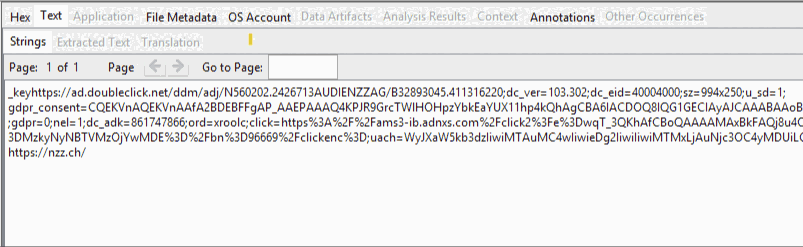

The infection vector was a malvertising creative served through DoubleClick’s ad rotation on a major Swiss news publisher’s site. The publisher itself was not compromised — the site was clean — but the creative inside the ad-network rotation carried a malicious script. The cached request itself, surfaced from the forensic image, shows the full ad.doubleclick.net URL with its query parameters — and a https://nzz.ch/ Referer header at the bottom, corroborating the publisher path:

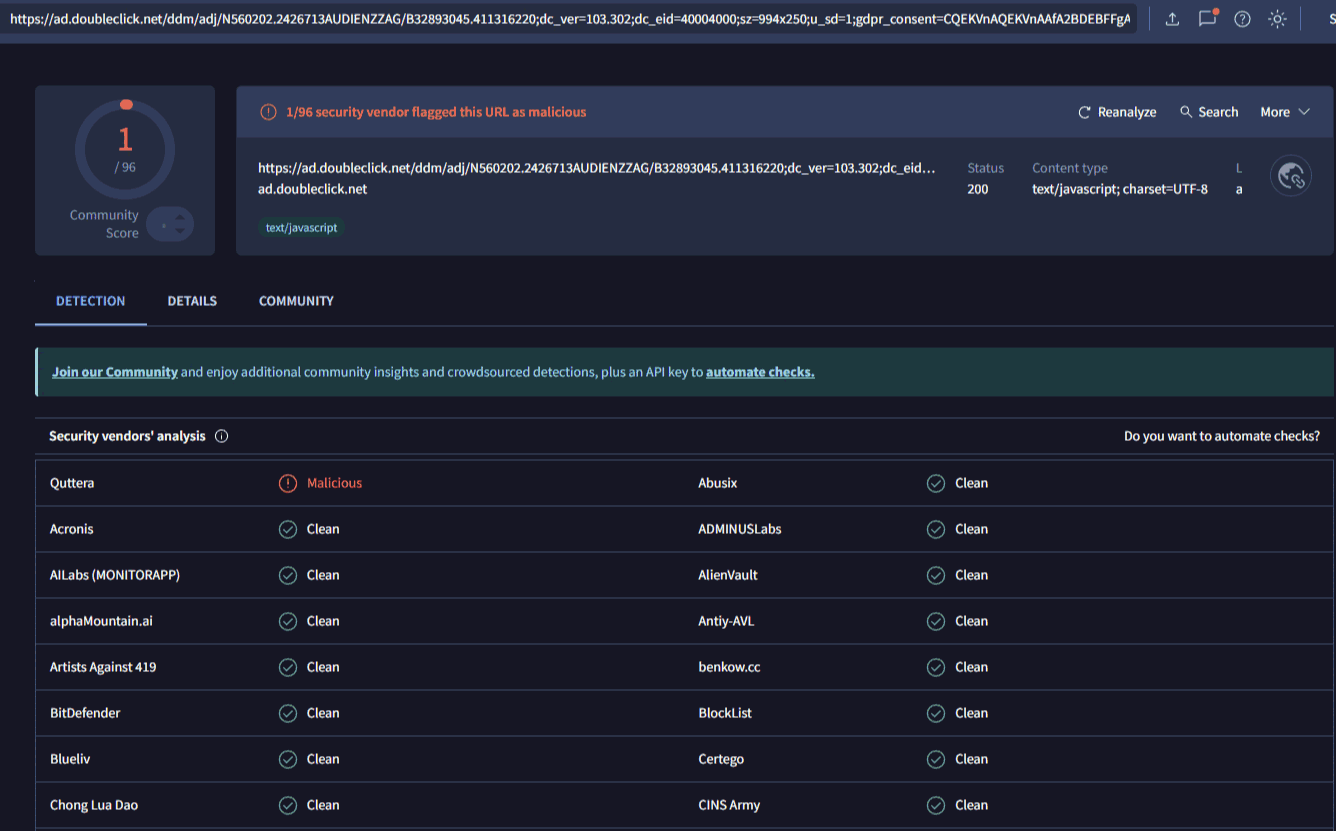

At the time of the incident, only 1 of 96 vendors on VirusTotal flagged the associated URL as malicious. Content-type was text/javascript;charset=UTF-8: a redirect or loader, not the carrier itself.

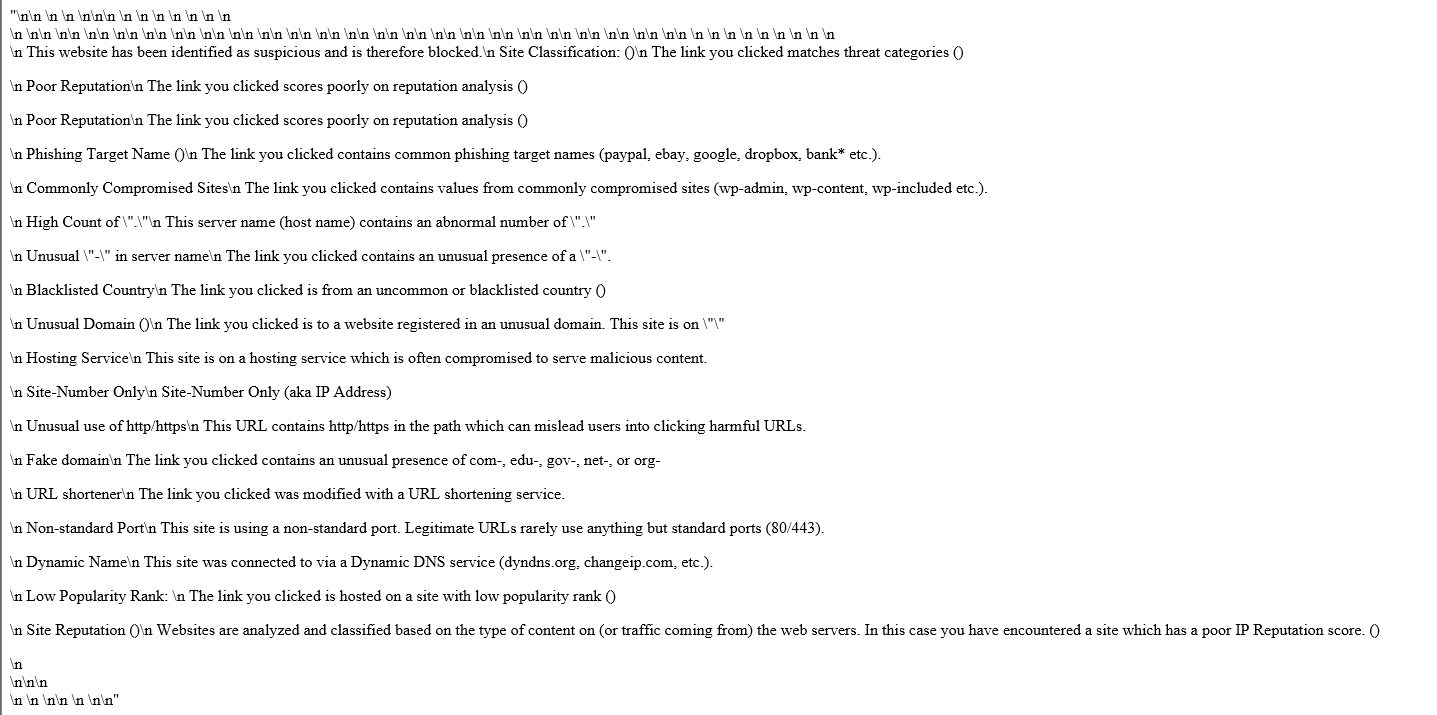

The lone detection was Quttera. Their reasoning is a category-by-category dump of why the URL fell out of trust — poor reputation, “phishing target name” overlap, blacklisted-country hosting, unusual domain shape, hosting-service signals, low popularity rank. None are smoking guns individually; together they were enough for one engine, and only one, to call it.

Two artefacts were dropped to the user’s Chrome profile within the same second:

Detection & containment

The 4-hour gap between drop and first SOC surfacing is the central defensive lesson of this engagement. Not because the SOC was slow — once the alert surfaced, analyst pickup was 2 minutes and formal IR activation another 10 — but because the initial drive-by activity was partially blocked at the EDR layer, which suppressed the loudest network indicators while the carrier itself remained dormant on disk. The Splunk correlation that ultimately fired keyed on outbound connection patterns, not the file-creation event.

Once the IR process activated, the host was network-isolated, pulled offline for forensic preservation, and never returned to production. The user account was migrated to a clean replacement endpoint. Browser-stored credentials were treated as compromised: passwords rotated, sessions revoked, MFA re-enrolled across affected services. The estate-wide threat-hunt cleared all other endpoints of indicators.

Outcome

Sample identification

Delivered artifact (74 MB padded)

Stripped carrier (overlay removed)

Carrier anatomy

File-level layout (74 MB delivered artifact)

Bar A — true-to-scale view of the 74 MB file. The PE image (1.2 MB of code + data) is the thin sliver on the left; everything else is 0xCC overlay padding.

Bar B — zoomed into the 1.2 MB PE image (overlay removed, this is where every meaningful byte lives). Segment widths are proportional to raw section sizes within the image.

The encrypted .reloc trailer (red, right side of Bar B) is almost a third of the actual binary — yet it is invisible in Bar A because of the overlay bloat that hides it from file-size-bounded scanners. That asymmetry is the whole point of the technique.

PE section table

Overlay characterisation

The MultiCommander disguise

The carrier is built from MultiCommander’s open-source MultiUpdate.exe auto-updater. The threat actor took the legitimate source, added the unpacking stub plus the encrypted payload, and recompiled. Multiple inherited artefacts survive in the binary — including the embedded application manifest:

<assembly xmlns="urn:schemas-microsoft-com:asm.v1" manifestVersion="1.0">
  <assemblyIdentity version="1.0.0.0" processorArchitecture="X86"
                    name="Microsoft.Windows.AutoUpdate" type="win32"/>
  <description>MultiUpdate</description>
  <dependency><dependentAssembly>
    <assemblyIdentity type="win32" name="Microsoft.Windows.Common-Controls"
                      version="6.0.0.0" processorArchitecture="X86"
                      publicKeyToken="6595b64144ccf1df" language="*"/>
  </dependentAssembly></dependency>
  <trustInfo><security><requestedPrivileges>
    <requestedExecutionLevel level="asInvoker" uiAccess="false"/>
  </requestedPrivileges></security></trustInfo>
</assembly>

Selected UTF-16 strings recovered from the carrier (genuine MultiCommander UI text):

"Multi Commander-http://multicommander.com/updates/version.xml"
"Failed to copy existing version to backup. Turn off Backup setting if you want to..."
"Warning! Failed to create directory \"%s\". But the folder might already exists..."
"Warning. A newer MultiUpdate.exe was found on disk. It is recommended that you run that instead."
"%s' is running. It can't be running when it is about to be updated."
"Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 5.1; GTB5; .NET CLR 1.1.4322; .NET CLR 2.0.50727)"
"Or reinstall a new version that you download from ASUS."
"D:\Projects\MultiCommander\BuildOutput\Output\Win32\Release v143\MultiUpdate\MultiUpdate.pdb"

Suspicious imports (carrier surface)

The visible import table is the carrier’s surface and is intentionally benign-looking. The payload’s real imports are resolved dynamically post-decryption via LoadLibraryA/W + GetProcAddress. Selected suspicious-but-explainable entries from the 433-function visible IAT:

Authenticode signature: lifted leaked NVIDIA certs

The PE has an Authenticode signature blob at file offset 0x473d7d8 (size 0x39c0, 14,784 bytes — well within the file, not past EOF as one might conclude from the file-size arithmetic alone). The blob is a fully-formed PKCS#7 SignedData structure. It parses cleanly, and what it contains is the interesting part: the carrier is dual-signed with two NVIDIA Corporation code-signing certificates. The SHA-1 leaf cert is one of the two confirmed March 2022 Lapsus$ leaked NVIDIA certs; the SHA-256 partner is the matching dual-sign cert that travelled with it in the lifted PKCS#7 blob.

Both signatures countersign with a Symantec Time Stamping Services Signer cert at signing time 2017-03-16 23:31:05 UTC — a date that falls comfortably inside both leaf certs’ validity windows, but more than seven years before this binary’s PE TimeDateStamp of 2024-12-23. That gap is the smoking gun: the timestamp didn’t come from a legitimate TSA round-trip on this binary in 2017 because this binary didn’t exist in 2017. The entire signed PKCS#7 blob was lifted from a real NVIDIA-signed driver or utility and grafted onto the carrier.

Cryptographic verification confirms it. Using signify:

$ python3 -c "
from signify.authenticode import AuthenticodeFile
with open('eff51f99...abba.exe', 'rb') as f:
    af = AuthenticodeFile.from_stream(f)
    print(af.explain_verify())"

AuthenticodeVerificationResult.INVALID_DIGEST
The expected hash does not match the digest in the indirect data.

The hash baked into the signed Authenticode structure does not match the actual bytes of this PE. Windows would refuse to validate either signature. So why bother lifting them?

The two cert serials and SHA-1 thumbprints are durable IOCs for this campaign cluster — reused across many lifted- signature samples in the wild — and are reproduced in §12 IOCs.

Common misreading: is the 70 MB padding encrypted, packed, or a bound browser?

The file size makes the overlay tempting to read as a hidden second-stage binary — a packed Lumma payload, a bundled browser, or some other concealed cargo. It isn’t. Five independent static checks all point the same way:

1. Entropy. 4 KB-block entropy across the 67.5 MB middle of the overlay sits at 0.0775 bits/byte. Encrypted data is at ~7.95, compressed (gzip / zip / lzma) at ~7.5, mixed-section PE at 6–7. There is no encryption or compression scheme that produces 0.08.
2. Whole-file block scan. rahash2 -B -b 4096 -a entropy over the full 75 MB file flags only 77 blocks at entropy ≥ 7.0. Every one of them lives inside the .reloc trailer (the known 347 KB Lumma payload, §5) or the trailing 14 KB lifted NVIDIA Authenticode blob (legitimately high entropy because real signed PKCS#7 contains compressed signature material). The 67.5 MB main body has zero high-entropy blocks.
3. Magic-byte hunt. Searches across the overlay for MZ, \x7fELF, PK\x03\x04, gzip, 7-Zip, RAR, NSIS, Inno Setup, single-byte-XOR’d MZ, LZMA, PNG / JPEG / WebM — zero hits. A bound browser would leave at least the wrapper or inner-PE signature.
4. Imports. VirtualAlloc, VirtualProtect, and the Crypt* family are not in the static IAT. Only VirtualQuery is. The carrier as-shipped has no static path to allocate executable memory or flip a page to RX — which is what hosting an embedded binary would require.
5. Structure. The overlay isn’t random fill, but it also isn’t data. A 15-byte template (f8 64 6e 09 · eight 0xCC · 90 b0 80) repeats identically every 1,035 bytes — ~71,000 cycles across 67.5 MB. Every 1 MB chunk has the same byte-distribution fingerprint: 8 distinct values, entropy 0.0775, exactly 7,091 non-0xCC bytes. Identical statistics across 68 megabytes is the signature of a custom padding tool, not data.

The .reloc trick

The .reloc section is the most interesting part of the file and is where Lumma is actually hiding. The PE’s BaseRelocationTable data directory declares VA=0xd2000, Size=0x8224 — i.e. the legitimate relocation table is exactly 33,316 bytes. But the section’s raw size on disk is 0x5D000 (380,928 bytes). That leaves 347,612 bytes of “extra” data inside the section that the PE loader will happily map into the process but that the relocation logic will never touch.

Per-4-KB-window entropy across .reloc

Sliding entropy reveals exactly where the encrypted blob lives — clearly bracketed by zero-filled padding on both sides:

section_off  file_off    entropy  visualisation
0x000000   0x00c8800   6.752   ███████████████████████████   ┐
0x002000   0x00ca800   6.761   ███████████████████████████   │ legitimate
0x005000   0x00cd800   5.792   ███████████████████████       │ relocation
0x008000   0x00d0800   7.003   ████████████████████████████  │ table (33 KB)
0x009000   0x00d1800   5.391   █████████████████████   ← drop-off
0x00a000   0x00d2800   4.181   ████████████████        ← zero-filled gap
0x00b000   0x00d3800   7.256   █████████████████████████████ ┐
0x00c000   0x00d4800   7.396   █████████████████████████████ │ ENCRYPTED
0x00d000   0x00d5800   7.284   █████████████████████████████ │ LUMMA
0x00f000   0x00d7800   7.313   █████████████████████████████ │ PAYLOAD
…                                                            │ (~339 KB,
0x051000   0x0119800   6.493   █████████████████████████     │  steady ~7.4
0x054000   0x011c800   6.850   ███████████████████████████   │  entropy)
0x05c000   0x0124800   7.195   ████████████████████████████  ┘
                                                  ← 317-byte zero alignment

Encrypted blob coordinates

First 256 bytes of the encrypted payload

No plaintext signatures (no "expand 32-byte k" ChaCha sigma, no AES S-box, no ZIP/PK magic). Byte distribution is near-uniform across all 256 values, consistent with a stream cipher or compressed-then-XOR’d output. Recent Lumma analyses (Q4 2024) document ChaCha20 as the in-payload string cipher, with the loader stage typically using a custom XOR-rotate construction; expect either to apply here.

Reverse engineering with radare2

All commands below were run against /tmp/lumma_stripped.exe (overlay-stripped derivative) with radare2. The stripped binary is functionally identical to the carrier — the overlay does not affect any code or data referenced by the PE.

Triage

$ r2 -e bin.cache=true /tmp/lumma_stripped.exe
[0x00446ffc]> aaa             # full analysis pass
[0x00446ffc]> iI               # binary info
[0x00446ffc]> iS               # sections + entropy bars
[0x00446ffc]> ii~LoadLibrary   # filter imports
[0x00446ffc]> aflc             # function count
3017

3,017 functions is a lot for a 596 KB .text; consistent with a fully-built MFC application. The unpacking stub is hidden among thousands of legitimate framework functions — security-through-obscurity layered on top of the section trick.

Entry point: standard MSVC CRT bootstrap

[0x00446ffc]> pd 4 @ entry0
        ;-- entry0:
┌ 337: entry0 ();
│       0x00446ffc      e87a0a0000     call fcn.00447a7b   ; __scrt_common_main_seh / cookie init
│       jmp 0x446e80                                       ; __scrt_common_main → mainCRTStartup → WinMain

The entry point is a normal MSVC C runtime startup. The first call (0x447a7b) is the __security_init_cookie-style cookie initialiser; control then jumps into the CRT pre-main and ultimately reaches the carrier’s WinMain. The unpacking stub is not at the entry point — that would be too obvious. It is reached after normal MFC initialisation, hidden among the genuine update logic.

The PE-section walker (function 0x00447014)

radare2’s analyser identified a function at 0x00447014 that walks the loaded image’s PE header and iterates the section table. This is the classic shape of “find .reloc at runtime, then read the trailer at offset 0x8400”:

[0x00447014]> pdf @ 0x447014
┌ 66: fcn.00447014 (int32_t arg_8h, uint32_t arg_ch);
│   0x00447014   55             push ebp
│   0x00447015   8bec           mov ebp, esp
│   0x00447017   8b4508         mov eax, dword [arg_8h]    ; image base
│   0x0044701b   8b483c         mov ecx, dword [eax + 0x3c] ; e_lfanew
│   0x0044701e   03c8           add ecx, eax                ; → IMAGE_NT_HEADERS
│   0x00447020   0fb74114       movzx eax, word [ecx + 0x14]; SizeOfOptionalHeader
│   0x00447024   8d5118         lea edx, [ecx + 0x18]       ; → first section header
│   0x00447029   0fb74106       movzx eax, word [ecx + 6]   ; NumberOfSections
│   0x0044702d   6bf028         imul esi, eax, 0x28         ; * sizeof(IMAGE_SECTION_HEADER)
│   ...
│   0x00447052   mov eax, edx                                ; return matching SECTION_HEADER*
│     ret                                                    ; or NULL if none

This is functionally an RVA-to-section lookup: given an image base and a target RVA (arg_ch), iterate the section headers and return the one that owns that RVA. It is a building block used both by legitimate code (manifest resource lookup, etc.) and by the unpacking stub when it needs to translate “where did the loader put my .reloc data?” into a usable address.

References from .text into the encrypted region

A scan of all 32-bit immediates in .text for values inside the .reloc VA range yields 80 hits, of which the highest-multiplicity targets are:

.reloc 0x004e00fe   6 refs
.reloc 0x004e00fb   6 refs
.reloc 0x00507883   2 refs
.reloc 0x004ee800   2 refs
.reloc 0x005046c7   2 refs
… 75 single-reference targets …
TOTAL: 80 immediates pointing at ≥ 0x4da400 (the encrypted blob)

Multi-referenced targets like 0x4e00fe (offset 0x2E0FE inside .reloc) are likely small lookup tables or key material that the unpacking stub indexes into multiple times during decryption.

Execution flow

End-to-end kill-chain summary. Each row is a phase; technique IDs map each step to §9 MITRE ATT&CK coverage.

Delivery On-host execution Malicious post-exploitation Exfiltration

Anti-analysis & sandbox evasion

Lumma’s anti-analysis stack is layered, and none of it is in the visible PE. The lifted MultiCommander .text section runs only the genuine MultiCommander startup sequence (MSVC CRT bootstrap, MFC CWinApp init, message-loop entry); we confirmed this end-to-end with radare2 plus an API-monitor trace. Every check below executes after the .reloc trailer cipher unpacks the second stage, which means none of these checks can be located or patched statically — they live inside the encrypted blob. The behaviours are reconstructed from dynamic execution traces and from public sandbox detections of the unpacked stage matched by Kevin O’Reilly’s Lumma.yar (kevoreilly/CAPEv2).

The six checks observed in dynamic execution

1. Self-validation hash check. T1480 The carrier opens its own file via GetModuleFileNameW → CreateFileW → ReadFile, hashes a region of the on-disk binary, and compares the digest against a constant baked into the encrypted blob. Mismatch triggers ExitProcess with no error dialog and no telemetry. Why it matters: any modification of the on-disk file — Defender quarantine + restore, FSFD content rewrite, manual byte-patch — trips this check and the sample silently exits. A defender who sees “sample exited cleanly with code 0” and assumes the binary is dead has been deceived.
2. WMI Win32_VideoController adapter check. T1497.001 Issues SELECT * FROM Win32_VideoController and inspects the Description / VideoProcessor fields. Bails on QXL, Standard VGA, VirtualBox Graphics Adapter, VMware SVGA, and similar hypervisor display strings. Default analysis images (QEMU+QXL, plain VirtualBox or VMware) trip this check immediately — the carrier opens its own file, runs the cipher, sees the hypervisor adapter string, and exits silently. Only well-seasoned sandbox images (GPU passthrough or a WMI provider hook faking an NVIDIA- / Intel-branded adapter, plus populated browser history and recent-file telemetry) pass this check and capture the full kill chain.
3. WMI AntiVirusProduct enumeration. T1518.001 Issues SELECT * FROM AntiVirusProduct against the SecurityCenter2 namespace, builds a list of installed AV products, and (on the panel side) tags the bot with the result. Likely informs which credential-stealing modules run; on managed-AV hosts, some Lumma builds defer certain stealer plugins.
4. SetUnhandledExceptionFilter anti-debug. T1622 Installs a top-level structured exception handler, then deliberately raises an exception (typically a sentinel RaiseException code) that only fires under a debugger. The custom handler redirects flow into the next unpacking stage. Without that handler installed (or under a naive debugger that swallows the exception), the unwind crashes the process before unpacking completes, and the sample dies pre-payload. Defeats casual x32dbg/x64dbg attach without ScyllaHide’s SEH-bypass profile active.
5. Cuckoo / sandbox harness thread suppression. T1497 Enumerates threads in the running process via CreateToolhelp32Snapshot → Thread32First/Next (or NtQuerySystemInformation) and looks at thread entry-point addresses. Threads whose entry points fall in DLLs known to belong to Cuckoo’s API monitor (and, transitively, to forks like CAPE) are passed to SuspendThread — effectively silencing the harness while letting the real malware code keep running. CAPE’s own signature engine flags this behaviour literally as “Tries to suspend Cuckoo threads to prevent logging”.
6. Keyboard layout / locale check. T1614 Calls GetKeyboardLayout + GetUserDefaultLangID + GetSystemDefaultUILanguage. Lumma operator builds explicitly refuse to run in CIS-region locales (Russian, Belarusian, Ukrainian, Kazakh) — the “bulletproof clause” that keeps the developers safe at home. As a side-effect, defenders running CIS-locale workstations are structurally immune to this strain.

Behavioural profile

When all six checks pass, the unpacked Lumma core executes its collection routine and exits. The dynamic profile is unusually flat for a stealer: 441 registry reads, zero registry writes, zero scheduled tasks, zero services, single process, single dropped artefact in %TEMP%, exit code 0, run duration under 90 seconds. This is a smash-and-grab design — read browser stores, exfil to C2, die. Persistence (when it exists) is operator-driven via a follow-on payload pushed back from C2, not a self-installing Run-key. Defenders looking for “malware that drops a persistence artefact on disk” will miss the carrier entirely.

MITRE ATT&CK coverage

Techniques compiled from dynamic execution traces of the unpacked stage cross-checked with the static analysis above. ✅ = directly observed in this sample’s behaviour or static structure; 🟡 = expected for LummaC2 generally, would need additional environment seasoning to confirm in a local lab.

Detection

Existing rule that does fire: Florian Roth’s leaked-NVIDIA-cert YARA

Florian Roth (Nextron Systems) published a rule in his signature-base on 2022-03-03 (announcement tweet), two days after the Lapsus$ disclosure. The rule (SUSP_NVIDIA_LAPSUS_Leak_Compromised_Cert_Mar22_1) fires on any PE compiled after 2022-03-01 whose Authenticode chain includes either of the two confirmed leaked NVIDIA cert serials, issued by VeriSign Class 3 Code Signing 2010 CA:

import "pe"

rule SUSP_NVIDIA_LAPSUS_Leak_Compromised_Cert_Mar22_1 {
   meta:
      description = "Detects a binary signed with the leaked NVIDIA certifcate and compiled after March 1st 2022"
      author = "Florian Roth (Nextron Systems)"
      date = "2022-03-03"
      reference = "https://twitter.com/cyb3rops/status/1499514240008437762"
   condition:
      uint16(0) == 0x5a4d and filesize < 100MB and
      pe.timestamp > 1646092800 and
      for any i in (0 .. pe.number_of_signatures) : (
         pe.signatures[i].issuer contains "VeriSign Class 3 Code Signing 2010 CA" and (
            pe.signatures[i].serial == "43:bb:43:7d:60:98:66:28:6d:d8:39:e1:d0:03:09:f5" or
            pe.signatures[i].serial == "14:78:1b:c8:62:e8:dc:50:3a:55:93:46:f5:dc:c5:18"
         )
      )
}

The carrier matches: PE timestamp 2024-12-23 is well past the 2022-03-01 floor, file is under 100 MB, and signature #0 carries the second of the two listed serials with the expected VeriSign issuer string. This rule already catches the sample — defenders running signature-base in any retro-hunt or file-arrival scan will see it without further work.

Existing rule that fires on the unpacked stage: Kevin O’Reilly’s CAPE Lumma.yar

Kevin O’Reilly maintains the canonical Lumma YARA rule inside the kevoreilly/CAPEv2 repo. The rule targets a sequence of bytes that appears in the unpacked Lumma core — which means it does not match the on-disk carrier (.reloc blob is still encrypted) but does match the in-memory Lumma image after the .reloc-trailer cipher runs. We confirmed the rule matches the unpacked stage of this artefact — ~317 KB of decrypted Lumma core captured at virtual address 0x03330000 in the carrier process (see §11) — which anchors family attribution against an external pre-existing detection, independent of any submission we made to public databases.

Why the published Lumma YARA rule misses this artefact

The Embee Research rule win_lumma_w1 targets three obfuscated UTF-16 strings (Chrome’s “Web Data” / “Login Data” SQLite filenames, “Opera Neon” profile dir) and constrains filesize < 5000KB:

rule win_lumma_w1 {
  strings:
    $o1 = { 57 00 ?? 00 ?? 00 ?? 00 ?? 00 ?? 00 ?? 00 65 00 62 00 ... }
    $o2 = { 4f 00 70 00 ?? 00 ?? 00 ?? 00 ?? 00 ?? 00 ?? 00 65 00 ... }
    $o3 = { 4c 00 6f 00 ?? 00 ?? 00 ?? 00 ?? 00 ?? 00 ?? 00 67 00 ... }
  condition:
    uint16(0) == 0x5a4d and filesize < 5000KB and (all of ($o*))
}

Recommended new YARA rule — carrier structure

This rule targets the artefact’s structural fingerprint rather than the Lumma payload’s strings, so it survives operator string-shuffling and matches the delivery stage (where the existing rule fails):

import "pe"
import "math"

rule LummaC2_MultiUpdate_Carrier_2024
{
    meta:
        author        = "CSIRT Versus Security (B. Schmid)"
        date          = "2025-02-14"
        description   = "Lumma carrier disguised as MultiCommander MultiUpdate.exe"
        sample_sha256 = "eff51f99...abba"
        tlp           = "AMBER"

    strings:
        $pdb = "MultiCommander\\BuildOutput\\Output\\Win32\\Release v143\\MultiUpdate\\MultiUpdate.pdb" ascii
        $manifest_a = "name=\"Microsoft.Windows.AutoUpdate\"" ascii
        $manifest_d = "<description>MultiUpdate</description>" ascii
        $multi_url  = "Multi Commander-http://multicommander.com/updates/version.xml" wide

    condition:
        uint16(0) == 0x5a4d and pe.is_pe and
        $pdb and ($manifest_a or $manifest_d or $multi_url) and
        for any sec in pe.sections : (
            sec.name == ".reloc" and
            sec.raw_data_size > (pe.data_directories[5].size + 0x4000) and
            math.entropy(sec.raw_data_offset, sec.raw_data_size) > 7.0
        )
}

Sigma — process / image-load anomaly

title: Lumma carrier disguised as MultiUpdate.exe
id: c1ae2a8e-93be-4e1c-9bc2-3f73a7fae8b2
status: experimental
description: Detects an MFC executable masquerading as MultiCommander's
  MultiUpdate.exe but unsigned and beaconing to .shop / steamcommunity.com
author: CSIRT Versus Security (B. Schmid)
date: 2025/02/14
logsource:
  product: windows
  category: process_creation
detection:
  selection:
    Image|endswith:
      - '\MultiUpdate.exe'
      - '\AutoUpdate.exe'
    OriginalFileName: 'MultiUpdate.exe'
  filter_signed:
    SignatureStatus: Valid
    Signature|contains: 'Mathias Svensson'
  condition: selection and not filter_signed
falsepositives:
  - Genuine MultiCommander update — must be Authenticode-signed
level: high
tags:
  - attack.defense_evasion
  - attack.t1036.005

Suricata — outbound TLS to Lumma .shop C2

alert tls $HOME_NET any -> $EXTERNAL_NET 443 (msg:"LummaC2 outbound TLS to .shop C2"; \
  tls.sni; pcre:"/^(abruptyopsn|cegu|cloudewahsj|framekgirus|klipgonuh|nearycrepso|noisycuttej|rabidcowse|tirepublicerj|wholersorie)\.shop$/i"; \
  classtype:trojan-activity; sid:1000201; rev:1;)

alert tls $HOME_NET any -> $EXTERNAL_NET 443 (msg:"LummaC2 outbound TLS to .click rotator"; \
  tls.sni; content:"regularlavhis.click"; \
  classtype:trojan-activity; sid:1000202; rev:1;)

alert tls $HOME_NET any -> $EXTERNAL_NET 443 (msg:"LummaC2 dead-drop resolver lookup (Steam)"; \
  tls.sni; content:"steamcommunity.com"; flow:established,to_server; \
  threshold:type both, track by_src, count 1, seconds 60; \
  classtype:policy-violation; sid:1000203; rev:1;)

Splunk SPL — Sysmon process-create with carrier signature

The base hunt: Sysmon Event ID 1, process image or OriginalFileName matches MultiUpdate, but the binary is not Authenticode-signed by the genuine MultiCommander publisher (Mathias Svensson). Surfaces both the Lumma carrier and any other unsigned masquerade.

index=sysmon EventCode=1
| eval is_multiupdate = if(match(Image,"\\MultiUpdate\.exe$")
                            OR OriginalFileName="MultiUpdate.exe", 1, 0)
| where is_multiupdate=1
| eval signed_ok = if(SignatureStatus="Valid"
                       AND match(Signature,"Mathias Svensson"), 1, 0)
| where signed_ok=0
| stats count
        values(Hashes) as hashes
        values(ParentImage) as parent
        min(_time) as first_seen max(_time) as last_seen
    by Computer, User, Image
| convert ctime(first_seen) ctime(last_seen)
| sort -last_seen

Splunk SPL — Steam dead-drop → .shop transaction

The behavioural signature: any host that reaches steamcommunity.com over TLS and then beacons to a .shop or .click domain within a 5-minute window. Catches Lumma victims regardless of which specific rotating .shop domain is in use. Requires Zeek ssl.log ingested into Splunk.

index=zeek sourcetype=ssl
| eval is_steam = if(match(server_name,"steamcommunity\.com$"), 1, 0)
| eval is_shop  = if(match(server_name,"\.shop$")
                      OR match(server_name,"\.click$"), 1, 0)
| where is_steam=1 OR is_shop=1
| transaction src maxspan=5m
| where mvfind(is_steam,"1") > -1 AND mvfind(is_shop,"1") > -1
| eval shop_dest = mvfilter(match(server_name,"\.shop$|\.click$"))
| table _time, src, dst, shop_dest, server_name, uid
| sort -_time

Splunk SPL — high-entropy section anomaly via Sysmon hashes

Lower-confidence hunt: any unsigned PE created on disk whose IMPHASH matches the carrier’s import-table fingerprint. IMPHASH survives section-content changes because the operator recompiled but kept MFC + libxml2 statically linked with the same import set.

index=sysmon EventCode=1
| rex field=Hashes "IMPHASH=(?<imphash>[A-F0-9]{32})"
| where imphash IN ("[redacted-imphash-MFC-libxml2-carrier]")
| eval signed_ok = if(SignatureStatus="Valid", 1, 0)
| where signed_ok=0
| stats values(Image) values(Computer) values(User)
        by imphash
| sort -values(Computer)

KQL (Microsoft Defender / Sentinel) — carrier execution

DeviceProcessEvents
| where FileName =~ "MultiUpdate.exe"
   or ProcessVersionInfoOriginalFileName =~ "MultiUpdate.exe"
| extend signed_by_legit =
    iff(ProcessVersionInfoCompanyName has "MultiCommander"
        and isnotempty(ProcessVersionInfoCompanyName)
        and SignatureType == "Valid",
        true, false)
| where signed_by_legit == false
| project Timestamp, DeviceName, AccountName, FolderPath, FileName,
          SHA256, MD5, ProcessCommandLine, InitiatingProcessFileName,
          SignatureType, ProcessVersionInfoCompanyName
| sort by Timestamp desc

KQL — Steam dead-drop call followed by .shop beacon

let steam_calls =
    DeviceNetworkEvents
    | where RemoteUrl has "steamcommunity.com"
    | project SteamTime = Timestamp, DeviceId, DeviceName,
              steam_url = RemoteUrl;
let shop_calls =
    DeviceNetworkEvents
    | where RemoteUrl matches regex @"\.(shop|click)(/|$)"
    | project ShopTime = Timestamp, DeviceId,
              shop_url = RemoteUrl, shop_dest = RemoteIP;
steam_calls
| join kind=inner shop_calls on DeviceId
| where ShopTime between (SteamTime .. SteamTime + 5m)
| project SteamTime, ShopTime, DeviceName,
          steam_url, shop_url, shop_dest
| sort by ShopTime desc

Static unpacker dead-end

Approach

Stand-alone Python script (lumma_static_unpacker.py) that:

1. Strips the 0xCC overlay (drops 70 MB of padding).
2. Locates the encrypted blob by scanning for the first non-zero byte after the legitimate base-relocation table (BaseRelocationTable.Size = 0x8224, blob actually begins at section offset 0x8400 due to 0x200 alignment).
3. Extracts the 1,072-byte polymorphic prefix and the 345,747-byte encrypted body separately.
4. Documents the cipher constants harvested from the prefix’s instruction stream.
5. Records the static-only dead-end and points the analyst at the correct dynamic-analysis breakpoint.

Cipher constants discovered

32-bit immediates that appear in the prefix’s arithmetic instructions, harvested from the x86 disassembly:

Standard ciphers tested negative

Before concluding the static path is blocked, we ruled out the obvious primitives by brute force against the encrypted blob:

Unicorn emulation result

Booting the prefix with all GP registers zero, mapping the full carrier image (PE headers + all five sections), and providing a TIB at fs:0 reaches instruction 146 cleanly, then aborts:

$ python3 emulate_prefix.py
Mapping image at VA 0x400000 size 0x12f000
  .text    VA 0x401000 size 0x94a00
  .reloc   VA 0x4d2000 size 0x5d000

Emulating prefix with full image mapped...
  INVALID READ @ EIP=0x4da593 address=0x31f size=4
Emulation halted: Invalid memory read (UC_ERR_READ_UNMAPPED)

Instructions executed: 146
Final EIP: 0x004da593  (offset into blob: 0x193)
Final registers:
  ECX = 0x0000031f      <-- accumulated length, NOT a pointer
  ESI = 0x000547a4      <-- accumulated length

The failing instruction

+0x018d 0x004da58d: b14e           mov cl, 0x4e
+0x018f 0x004da58f: c1c702         rol edi, 2
+0x0192 0x004da592: 49             dec ecx
+0x0193 0x004da593: 8129bbea7e1f   sub dword ptr [ecx], 0x1f7eeabb   <<< needs valid [ecx]
+0x0199 0x004da599: c1c815         ror eax, 0x15

This is the cipher’s per-block decrypt step. ECX is supposed to point at a destination buffer; the prefix walks it 4 bytes at a time, applying [ecx] -= 0x1f7eeabb mixed in with rotation/XOR of the surrounding registers. In our static run, ECX=0x31f (a small integer), confirming that the carrier’s caller would set ECX to a valid address before transferring control here.

Recommended dynamic-analysis breakpoint

To extract the unpacked payload in REMnux/FlareVM with x32dbg / WinDbg:

1. Open the sample in the debugger; let MFC WinMain initialise (run until idle).
2. Set a memory-write breakpoint at the page covering VA 0x004da593, OR a hardware execute breakpoint at 0x004da593 directly.
3. Continue execution. When the breakpoint fires, capture ECX — that points to the destination buffer the cipher writes to.
4. Let the loop run to completion (the prefix ends at 0x004da830); dump the destination buffer of size ESI (= 0x547a4 bytes) to disk.
5. Re-run the public YARA rule (win.lumma_w1.yar) against the dump — it should match the obfuscated UTF-16 strings and confirm the unpacked payload is the Lumma stealer.

Equivalent breakpoint in WinDbg syntax: ba e1 0x004da593

Files emitted by the partial static unpacker

For reproducibility, the stand-alone Python helper (lumma_static_unpacker.py) strips the overlay, locates the encrypted .reloc trailer, and splits the obfuscation prefix from the encrypted body:

$ python3 lumma_static_unpacker.py "Malware/eff51f99...abba.exe"
[*] Reading Malware/eff51f99...abba.exe
    size   = 74,715,545 bytes (71.25 MiB)
    sha256 = eff51f995cd6463cd9b3a2ea4a14cc85e3cc5c1b5b71db6d90765b3df175abba
[*] Stripping overlay padding...
    overlay length = 73,513,369 bytes (70.11 MiB)
    -> /tmp/lumma_stripped.exe       sha256=c466795354007a604fa1805b6d97b6f3e43179c85544594fe365f22ede8fe0a6
[*] Extracting encrypted .reloc trailer...
    blob length    = 346,819 bytes (338.7 KiB)
    -> /tmp/lumma_encrypted_blob.bin sha256=6e59580e512687981236cd42b23f46507834cea6009d1845ebfe177bef6c5062
[*] Obfuscation prefix: 1072 bytes  -> /tmp/lumma_obfuscation_prefix.bin
[*] Encrypted body:     345,747 bytes  (entropy ~7.51)

Indicators of compromise

All IOCs defanged for safe handling.

File hashes

Code-signing — lifted leaked NVIDIA certificates (Lapsus$ March 2022)

The SHA-1 leaf is one of the two confirmed leaked NVIDIA certs from the Lapsus$ disclosure (the other is 43BB437D609866286DD839E1D00309F5, not present in this sample). Both NVIDIA certs in our chain expired in 2018 and were revoked after the leak; Microsoft added them to the disallowed-cert list, but legacy systems and metadata-only checkers may still trust them. Either of the two leaked SHA-1 serials appearing in an Authenticode chain on a non-NVIDIA file is a high-confidence IOC for lifted-signature tradecraft.

Network — suspected C2 / dead-drop infrastructure

Network — observed IPs

TLS fingerprints (Steam dead-drop call)

Host artefacts

Recommendations

For incident responders working this engagement

1. Validate the new YARA rule against the existing IOC pack and historical malware-bazaar pulls. Roll into EDR if matches are clean.
2. Expand the dead-drop hunt: any host with Sysmon-recorded TLS to steamcommunity.com followed by TLS to a *.shop domain within ≤ 5 minutes is likely a Lumma victim regardless of which specific .shop domain rotated in.
3. Re-issue affected user credentials — session-token revocation for any browser-stored OAuth tokens; the operator has the cookies.
4. Block the inherited carrier identity: AppLocker or WDAC rule for any MultiUpdate.exe not signed by the genuine MultiCommander publisher (Mathias Svensson), denied at execution.
5. Browser hardening: users on managed endpoints should not have password-manager-style “save in browser” privileges for high-value applications; promote SSO + hardware key wherever possible.

For continuing the analysis

1. Static decryption of the .reloc trailer. The encrypted blob is preserved at /tmp/lumma_encrypted_blob.bin. Walk back from the cross-reference to 0x004da400 to identify the unpacking stub, then re-implement the cipher in Python. Once decrypted the blob is expected to be a PE that the public YARA rule will match — closing the detection gap end-to-end.
2. Dynamic confirmation in REMnux or FlareVM. Capture the actual cipher output at runtime (memory dump of the carrier process after WinMain entry); compare against the static decryption result to validate.
3. Submit findings upstream: the carrier-structure YARA is genuinely useful — share it with Embee Research as a complementary detection alongside the existing string-obfuscation rule.

References

• Embee Research — Lumma string-obfuscation YARA — github.com/embee-research/Yara-detection-rules
• Malpedia — malpedia.caad.fkie.fraunhofer.de/details/win.lumma
• g0njxa — Approaching stealer devs (LummaC2 interview) — g0njxa.medium.com/approaching-stealers-devs-94111d4b1e11
• dexpose.io — In-depth technical analysis of Lumma Stealer (2024)
• Malwarebytes — Free AI editor lures (Nov 2024)
• Florian Roth (Nextron Systems) — SUSP_NVIDIA_LAPSUS_Leak_Compromised_Cert_Mar22_1 YARA rule — github.com/Neo23x0/signature-base/blob/master/yara/gen_nvidia_leaked_cert.yar
• Florian Roth — announcement / context for the leaked-NVIDIA-cert YARA — twitter.com/cyb3rops/status/1499514240008437762
• Kevin O’Reilly (CAPE Sandbox) — Lumma YARA rule for the unpacked stealer core — github.com/kevoreilly/CAPEv2/blob/master/data/yara/CAPE/Lumma.yar
• Emerging Threats Open ruleset — ET MALWARE Win32/Lumma Stealer Related CnC Domain Suricata signatures — rules.emergingthreats.net
• BleepingComputer — Malware now using NVIDIA’s stolen code-signing certificates (Mar 2022)
• Threatpost — NVIDIA’s Stolen Code-Signing Certs Used to Sign Malware (Mar 2022)
